| For the cabinet design, I used the three games in
my arcade
(Defender, Stargate, and Berzerk) as a reference for styles and dimensions.

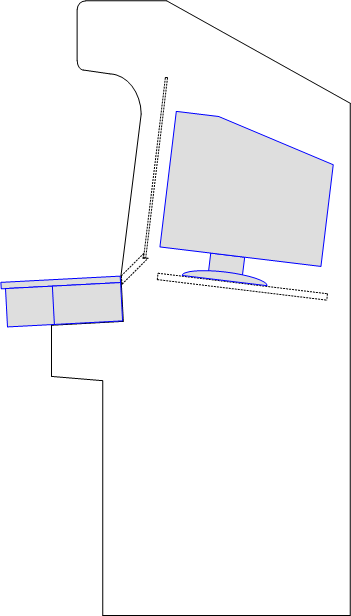

Here's a picture of the profile.
|
|

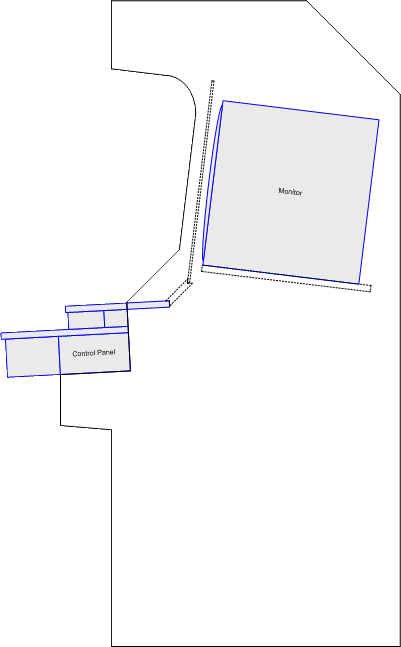

| I also designed a second cabinet for a close friend's MAME project - The Way Back Time Machine.
For his cab, I went with a more traditional profile. It is smaller in all dimensions and doesn't
utilize a two deck control panel.
|
|
If you use MS Visio and wish to view the actual layouts (with dimensions), download them here:
Arcade Addiction Cabinet Side View w/dims
Way Back Time Machine Cabinet Side View w/dims
|
